How to Install a Steering Wheel with LED Shift Lights (and What All Those Lights & Numbers Actually Mean)

How to Install a Steering Wheel with LED Shift Lights (and What All Those Lights & Numbers Actually Mean)

Upgrading to a steering wheel with LED shift lights is one of the cleanest “race car” mods you can do. You get a better-looking wheel, a row of LEDs that tell you exactly when to shift, and a digital screen with real-time driving data—without taking your eyes off the road.

This guide will walk through:

  • What LED shift lights are

  • What information you can see on them

  • How to install a steering wheel with LED shift lights

  • How to wire the red (power) and black (ground) wires safely

Big disclaimer: Steering wheels and airbags are safety-critical. If you’re not confident with tools or wiring, have a professional installer handle it. Incorrect work can cause warning lights, steering issues, or injury.

What Are LED Shift Lights?

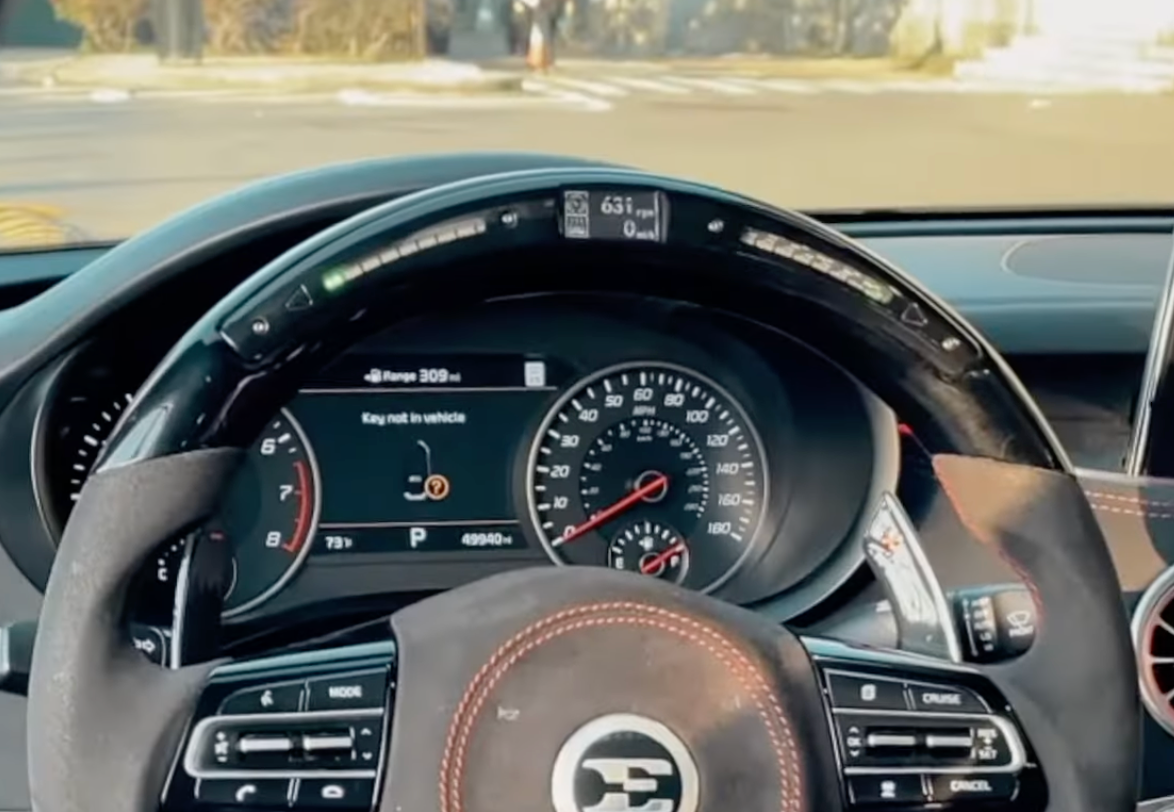

LED shift lights are a series of LEDs (usually across the top of the wheel) that light up progressively as RPM increases. Instead of watching the gauge cluster, you can see your revs building across the top of the steering wheel.

Typical behavior:

  • LEDs start lighting up green at mid-RPM

  • Transition to yellow as you approach the optimal shift point

  • Enter red and often flash when it’s time to shift

Many modern LED steering wheels also have a small screen in the center that displays extra data.

What You Can See on an LED Steering Wheel Display

Depending on the kit and vehicle, your LED wheel may show:

  • RPM

    • LED bar at the top

    • Numeric RPM on the screen (e.g., 4.8 x1000)

  • Speed

    • Digital readout (MPH or km/h)

  • Temperatures

    • Engine coolant or oil temperature (when supported)

  • Battery voltage

    • Lets you spot charging issues early

  • Timer / lap info (on some models)

    • 0–60 times, simple lap timer, etc.

  • Other basic data

    • Drive time, gear indicator (on some cars), etc.

Most kits let you adjust:

  • Brightness

  • Color sequences

  • Shift points based on your specific redline

  • What the main screen shows by default (speed, RPM, temps, etc.)

Before You Start: Tools & Safety

Safety

  1. Airbag caution

    • Disconnect the battery.

    • Wait at least 10–15 minutes before touching any airbag connectors.

    • Never cycle the ignition with the airbag unplugged.

  2. Steering alignment

    • Make sure the wheels are pointed straight before removing the stock wheel.

    • Mark the position of the steering shaft vs. the wheel so the new wheel goes on perfectly straight.

  3. Torque

    • The center steering wheel bolt must be torqued to the manufacturer’s specs.

  4. Wiring

    • If you’re unsure about wiring to 12V power and ground, use a professional. Done wrong, you could blow fuses or cause electrical issues.

Common Tools

  • Socket set & ratchet

  • Torx drivers (for airbag screws)

  • Trim tools or small flathead screwdriver

  • Paint marker or masking tape

  • Torque wrench

  • Wire strippers / crimpers (for the LED power wires)

  • Add-a-fuse (fuse tap), ring terminal, and a proper ground point

Step 1: Park Straight & Disconnect the Battery

  1. Park on level ground with the front wheels perfectly straight.

  2. Turn the ignition off and remove the key (or shut down a push-start car completely).

  3. Open the hood and disconnect the negative battery terminal.

  4. Wait 10–15 minutes to let the airbag system discharge.

Step 2: Remove the Factory Airbag

  1. On the back of the steering wheel, locate the access holes for the airbag retaining screws.

  2. Insert the appropriate Torx driver and loosen these screws (they often stay trapped in the wheel).

  3. Gently pull the airbag module straight toward you.

  4. Carefully unplug:

    • The airbag connectors (usually yellow/orange, with locking tabs)

    • The horn connector

  5. Place the airbag face up in a safe area away from static, heat, or impact.

Step 3: Remove the Stock Steering Wheel

  1. With the airbag off, you’ll see the center steering wheel bolt and several wiring plugs.

  2. Unplug all connectors leading from the wheel to the clock spring (buttons, paddles, etc.).

  3. Use a paint marker or tape to mark the top center of the shaft and the matching position on the wheel.

  4. Loosen the center bolt with a socket and breaker bar.

    • Leave the bolt threaded a few turns while you wiggle the wheel loose so it doesn’t pop into your face.

  5. Once loose, remove the bolt completely and slide the wheel off, feeding the wiring gently through.

Step 4: Transfer Buttons, Paddles & Trim

Most aftermarket LED wheels use the original:

  • Button controls

  • Trim pieces

  • Paddle shifters (if equipped)

  1. Remove the screws holding your OEM button modules and trim.

  2. Move each piece to the new wheel in the same location.

  3. Make sure all cables are routed cleanly, with no pinched or twisted wires.

Step 5: Route the LED Shift-Light Harness

Your LED wheel will have:

  • An LED wiring harness coming from the wheel

  • Sometimes a separate control box/module

  • A pair of loose wires: red (power) and black (ground)

Typical routing:

  1. Feed the LED harness through the center of the wheel and out behind the steering column, just like the original wiring.

  2. Route the harness down behind the lower dash area where you can access a switched 12V source and a good ground.

  3. If your kit also uses an OBD2 plug, route that leg of the harness to the OBD2 port location and plug it in or connect it through a Y-splitter if needed.

Secure the harness with zip ties so it can’t get caught in the pedals or moving parts of the column.

Step 6: Wiring the LED Shift Lights (Red & Black Wires)

This is the key part you asked about. Most LED shift-light kits include:

  • Black wire = Ground

  • Red wire = 12V power (switched/ignition)

Black Wire – Ground

You want a solid, clean ground:

  1. Find a factory grounding point under the dash or near the kick panel (often a bolt going into bare metal with other grounds attached).

  2. Lightly clean the area if needed so you have bare metal contact.

  3. Crimp a ring terminal onto the black wire.

  4. Attach it under the existing ground bolt, tighten it securely, and make sure the wire can’t be pulled loose.

Red Wire – Power (Switched 12V)

You want the LEDs to turn on only when the ignition is on, not constantly.

The most common method:

  1. Identify a switched 12V circuit in your interior fuse box—something like “ACC,” “IGN,” “Radio,” etc. that turns off when the key is off.

  2. Use an add-a-fuse (fuse tap):

    • Pull the original fuse for that circuit.

    • Insert it into the fuse tap.

    • Insert a second fuse in the tap for the LED circuit (per your kit’s instructions).

  3. Crimp the LED kit’s red wire into the fuse tap’s power lead.

  4. Plug the fuse tap into the slot of the original fuse in the fuse box.

Double-check:

  • The wheel’s LEDs come alive only when the ignition is on.

  • They power off when the car is turned off.

If you’re not comfortable identifying circuits or using a fuse tap, have a professional or an auto-electrician do this step. It’s quick work for them and protects your car’s electrical system.

Step 7: Install the New Wheel on the Column

  1. Slide the new wheel onto the steering shaft, aligning it with your marks so it sits perfectly straight.

  2. Reinstall the center bolt by hand, then torque it to the manufacturer’s specified value.

  3. Confirm that:

    • The wheel turns smoothly from lock to lock

    • The clock spring isn’t binding

    • No wires are getting twisted

Step 8: Reconnect Wiring & Reinstall the Airbag

  1. Reconnect all button and paddle harnesses to the new wheel.

  2. Connect any LED-wheel plugs that interface with the factory harness.

  3. Reinstall the airbag:

    • Reconnect the airbag plugs and lock their tabs

    • Plug in the horn connector

    • Carefully push the airbag into place and tighten the retaining screws from the back

Step 9: Reconnect the Battery & Test Everything

  1. Reconnect the negative battery terminal.

  2. Turn the ignition on (face slightly back, just in case).

  3. Check for:

    • No airbag or steering warning lights

    • Functioning horn

    • Buttons and paddles working normally

    • LED bar powering up when the ignition is on

Take a short test drive:

  • Make sure the wheel is straight when driving straight.

  • Turn full lock left and right to confirm smooth Movement.

  • Watch the LED bar build with RPM and verify the shift points feel logical.

Setting Up the LED Display & Shift Points

Most LED wheels let you tweak settings via small buttons on the wheel or control box:

  • Shift points

    • Set the RPM where the first LEDs come on

    • Set the point where the final red LEDs flash for “shift now”

  • Brightness

    • Dimmer for night driving, brighter for daytime

  • Display pages

    • Choose between speed, RPM, temps, voltage, etc. as the default screen

Once dialed in, you can:

  • Use the LED bar to time shifts by color/flash instead of staring at the cluster

  • Keep an eye on coolant/oil temp before pushing the car

  • Quickly spot low voltage or other issues

Final Thoughts

A steering wheel with LED shift lights gives you:

  • A cleaner, more aggressive look

  • Better visibility of RPM and vital data

  • A more connected, motorsport-style driving feel

The crucial extra step with many kits is wiring that black ground wire to a solid chassis ground and the red power wire to a fused, switched 12V source so the system is safe, reliable, and only on when the car is.
